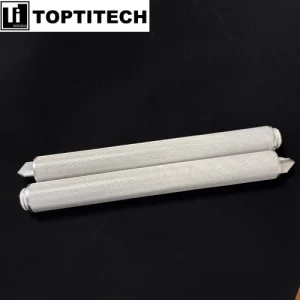

Metal Filters20″ Sintered SS304 Wire Mesh Filter Element
- Metal Filters

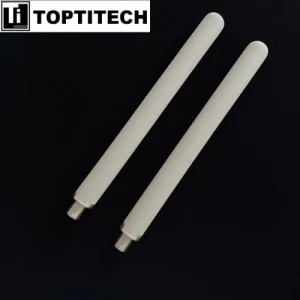

316L Stainless Steel Filter Cartridge
- Metal Filters
316L Stainless Steel Filter Disc
- Metal Filters

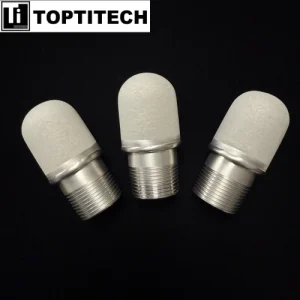

Microporous Titanium Filter
- Metal Filters
Microporous Titanium Filter Cartridge
- Metal Filters
PE Sintered Filter Cartridge (Corrosive Chemicals)
- Metal Filters
Pleated Stainless Steel Filter Cartridge
- Metal Filters
Porous Nickel Filter Tube (80 µm)
Our sintered metal filter products include titanium sintered filters, SS316L stainless steel powder filters, sintered wire mesh filters and porous metal filter cartridges. These filters provide absolute-rated particle retention for pharmaceutical sterile filtration, seawater desalination pre-treatment, oil & gas produced water reinjection, chemical process filtration and hydraulic fluid power systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pore size range | 0.2 – 100 µm |
| Materials | Grade 1 titanium (ultimate corrosion resistance), SS316L (general-purpose chemical compatibility) |
| Form factors | Cylindrical cartridges, filter discs, cup filters, custom-geometry elements |
| Connections | Threaded or flanged |
| Regeneration | Backwashing, ultrasonic cleaning, chemical cleaning |
| Documentation | Pore size certification and dimensional inspection reports |
Why Sintered Metal Over Polymer Membranes
Sintered metal filters withstand temperatures up to 600°C, resist aggressive chemical environments, can be regenerated by backwashing or ultrasonic cleaning, and provide unlimited service life in many applications.
Applications
- Pharmaceutical sterile filtration
- Seawater desalination pre-treatment
- Oil & gas produced water reinjection
- Chemical process filtration
- Hydraulic fluid power systems
Frequently Asked Questions
What is a sintered metal filter?
A sintered metal filter is a porous metal element made by sintering metal powder, providing precise filtration with high strength, backwashability and long service life.
How do I choose the right pore size for a metal filter?
Select pore size based on the particle size you must remove: start with the largest pore that still meets your required retention efficiency to minimize pressure drop.
Can sintered metal filters be cleaned and reused?
Yes. Sintered metal filters can be backflushed, ultrasonically cleaned or chemically cleaned, making them cost-effective compared with disposable media.
What is the difference between titanium and stainless steel filters?
Titanium filters offer superior corrosion resistance for oxidizing and chloride environments; stainless steel 316L suits most industrial applications at lower cost.
