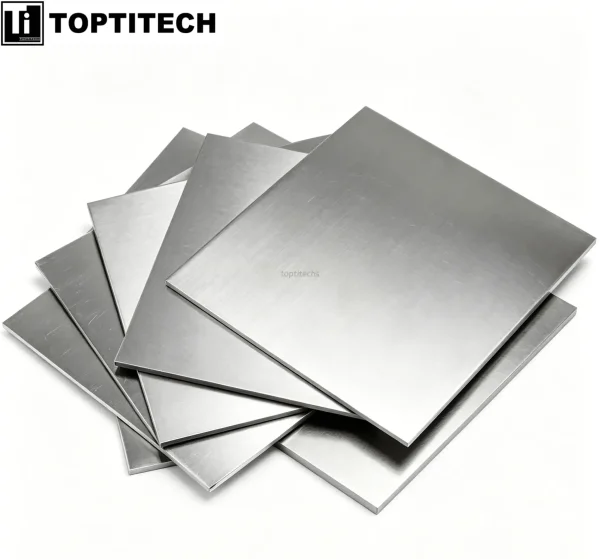

2 mm Titanium Sheet (Grade 1)
- Titanium Sheets & Plates

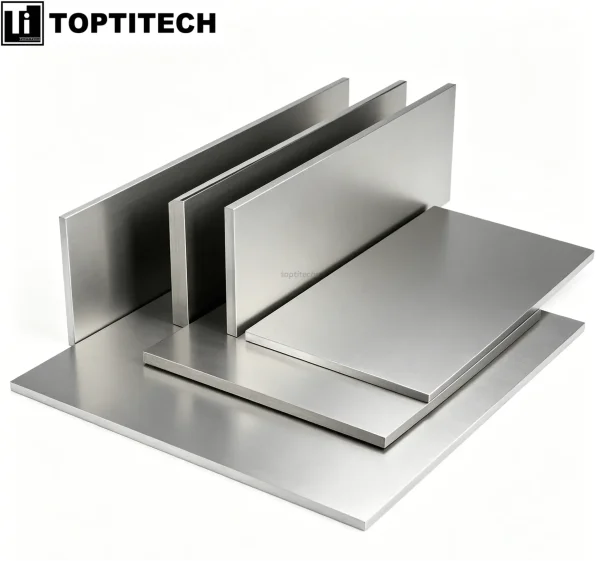

2.5 mm Titanium Sheet (Grade 1)
- Titanium Sheets & Plates

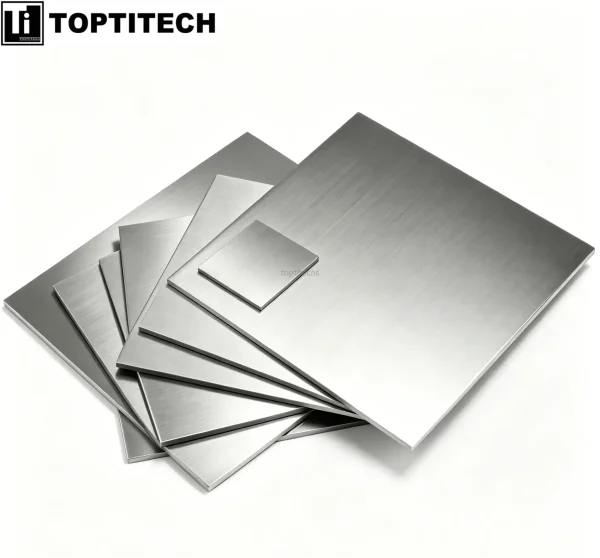

3 mm Titanium Sheet (Grade 1)
- Titanium Sheets & Plates
4 mm Titanium Plate (Grade 1)
- Titanium Sheets & Plates
5 mm Titanium Plate (Grade 1)
- Titanium Sheets & Plates

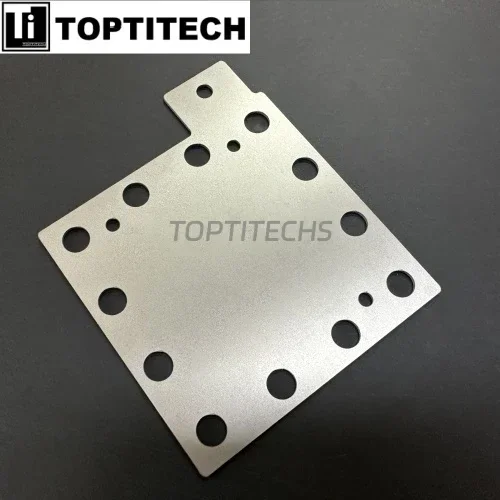

Titanium Anode Plate
TOPTITECHS supplies Grade 1/TA1 pure titanium sheets and plates conforming to ASTM B265 and GB/T 3621. All sheets are supplied in the annealed M condition with a smooth bright surface, with cut-to-size and custom dimensions available. Grade 1 titanium sheet offers the highest purity and ductility in the commercially pure titanium family, with elongation ≥30%, making it ideal for deep drawing, tight-radius bending and complex sheet metal forming.
Technical Specifications
| Parameter | Specification |
|---|---|
| Grades | GR1 (TA1), GR2 (TA2) — higher strength on request |
| Standards | ASTM B265, GB/T 3621 |
| Thickness | 0.5 mm – 5.0 mm |
| Standard size | 1000 mm × 2000 mm (cut-to-size available) |
| Condition | Annealed (M) |
| Surface finish | Cold-rolled bright, pickled, electropolished |
| Elongation | ≥ 30% (GR1) |
Applications
- Chemical process equipment cladding
- Electrolytic cell components
- Heat exchanger plate blanks
- Seawater desalination plant liners
- Pharmaceutical and food-grade equipment
- Non-magnetic precision components
Frequently Asked Questions
What titanium sheet and plate grades are available?
We supply GR1 (TA1), GR2 (TA2), GR5 (TC4) and GR12 per ASTM B265.
What surface finishes are available?
Options include hot-rolled, cold-rolled, pickled, polished and mirror finishes depending on application.
Can titanium plates be cut to size?
Yes, we provide laser cutting, waterjet cutting and shearing to your dimensions with tolerance control.
What are titanium plates used for?
Titanium plates are used in chemical equipment, heat exchangers, electrolysis, marine and aerospace applications.
